I-PHOTONICS
LIDIZ
IBS Evaporation equipment for VIS, IR Optics and Lasers.
The LIDIZ IBS coater line is the result and embodiment of 50 years’ experience in Ion Beam Sputtering (IBS) technology. IBS technology is well known for its extremely low-loss optical coatings. LIDIZ IBS Sputtering Systems represent state of the art tools for the deposition of optical coatings for a wide range of applications. LIDIZ has been designed to produce thin films from a wide range of materials with high accuracy and excellent quality.
​
Our unique self-developed optical process control system OCP Singlewave and OCP Broadband with real-time optimization of the optical coating process enables a tight control of complex filter coatings with high accuracy and repeatability.
​
SENSORS
OPTICAL
R&D
TELESCOPES
LASER OPTICS
MICROSCOPE
WHERE LIDIZ COATINGS ARE USED

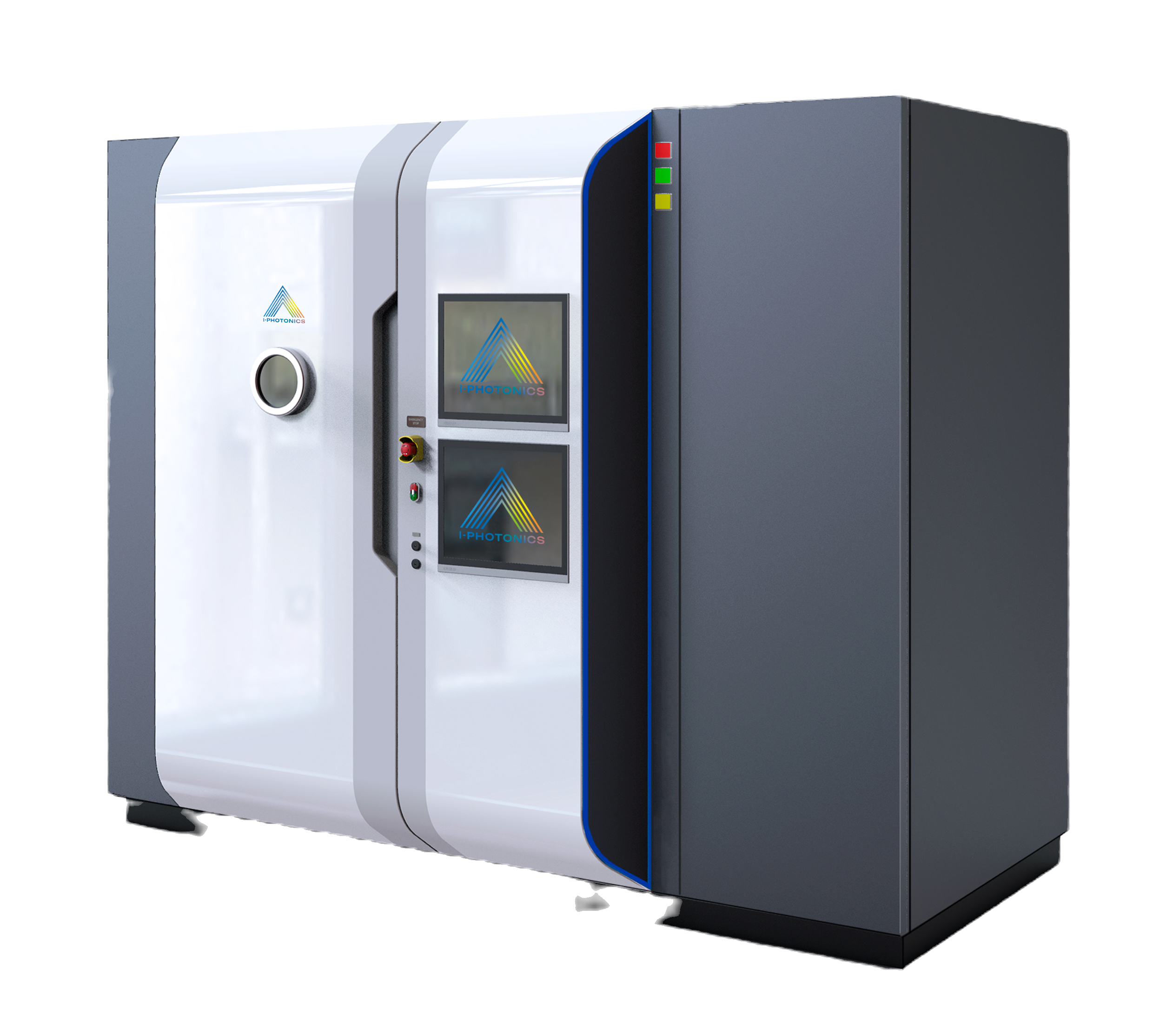

LIDIZ Models
RF IBS for sputtering and assistance, Automatic Optical Monitoring, Multiple choice of substrate holder (single disk, planetary, High speed), Load-lock.
RF IBS for sputtering and assistance, Automatic Optical Monitoring, Increased Throughout.
​
KEY FEATURES
RF GRID
HIGH-POWER IBS
RF Grid high-power IBS for deposition with RF neutraliser to ensure high deposition rates and film quality,
IBS
ASSIST
RF IBS assist with RF Neutraliser to ensure accurate control of the stoichiometry and enables substrate pre-cleaning and activation.
OPTICAL PROCESS
CONTROL (OCP)
Automatic Optical Monitoring system in various configurations:
- OCP Broadband
- OCP Singlewave
- OCP Duo
- OCP Laser
​
FLEXIBLE SUBSTRATE HANDLING
Multiple choice of substrate holders to provide maximum product flexibility and to match productivity needs:
- Single Disk
- Planetary System
- High-Speed Single Disk
COATING APPLICATIONS
LIDIZ IBS systems are designed for a wide range of high-performance optical coating applications, including laser mirrors, bandpass and multi-band bandpass filters, notch and multi-notch filters, and Rugate filters.
The systems are also suitable for low-scatter and low-absorption optics, thin-film polarizers, wide-angle antireflection coatings, coatings on optical fibres, and AR coatings for laser diodes, as well as applications requiring low-defect coatings.
For demanding optical applications, LIDIZ enables the production of low-loss HR and AR coatings with total optical loss below 10 ppm. The systems can also produce complex multi-layer filters with more than 100 layers, providing the high level of precision and thickness control required for advanced optical filter designs.
Let's Find the Right System For Your Application
Our team will help you identify the ideal system configuration to meet your process requirements and production goals. With expert technical guidance from initial specification through installation and ongoing support, we ensure your system is configured to deliver the performance you need.
