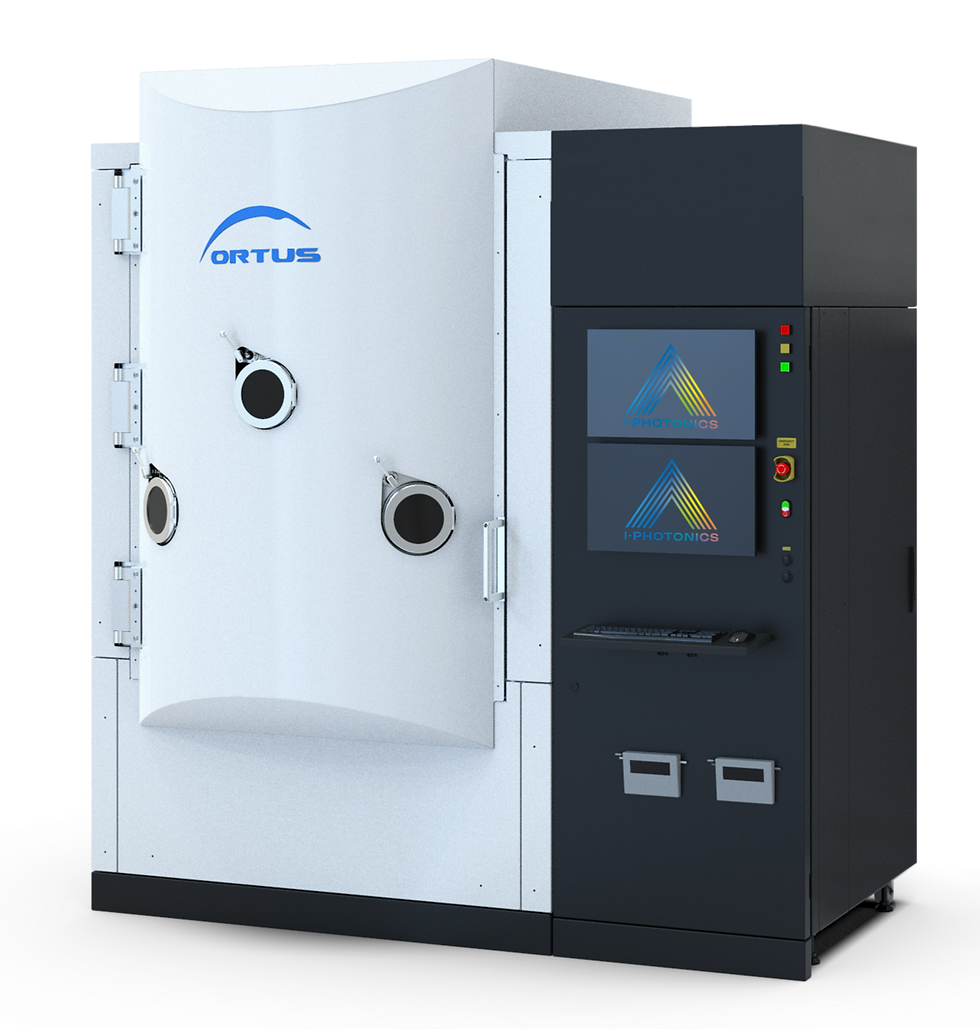

Ortus 1500

Substrate holder: Dome ø1390 mm, Planetary 4x ø590 mm. Automatic Optical Monitoring, Two E-guns, Two Resistance evap. and RF Plasma Assist Source.

The biggest ORTUS with the highest loading capacity.

Distinguishing features:

  • Suitable for coating on large 3D shapes substrates

  • Suitable low temperature evaporation for coating on plastic substrates

CONTACT US
Ortus 1500 Vacuum System

Configuration Options:

1. Substrate Holder

Ortus 1500 Vacuum System Technical Spec

2. Technological Devices​

  • Electron Beam Evaporation (EBE)

    • 3 different sizes EV M-6, EV M-8, EV M-10

    • Customized crucibles, 1 ... 12 pockets

    • Max. quantity : 2 pcs

  • Cleaning and Assistance sources

    • Accelerator with anode Layer (Ion Current Density up to 4.2 mA/cm^2)

    • Copra: RF Plasma Assist Source (Ion Current Density up to 2.5 mA/cm^2)

    • Max. quantity : 1 pcs

  • Resistance evaporation source

    • Max. quantity : 2 pcs together with 2 EBE

3. Coating Process Control

  • Rate and thickness control system (quartz control)

  • Optical process monitoring system OCP

    • OCP Singlewave for monochromatic monitoring.

4. Accessories

  • Substrate heating system

    • IR lamps

    • Tubular heater

Other Ortus Models

Ortus 700 Vacuum System

Ortus 700

Substrate holder: Dome ø620 mm, Planetary 3x ø250 mm.

Automatic Optical Monitoring.

2xE-gun, Resistance evap., End hall assist, RF Plasma Assist Source.

Ortus 900 Vacuum System

Ortus 900

Substrate holder: Dome ø800 mm,

Planetary 4x ø327 mm.

Automatic Optical Monitoring.

2xE-gun, Resistance evap, End hall assist, RF Plasma Assist Source.

Ortus 1100 Vacuum System

Ortus 1100

Substrate holder: Dome ø995 mm,

Planetary 4x ø387 mm.

Automatic Optical Monitoring.

2xE-gun, 2XResistance evap,

RF Plasma Assist Source.
