Ortus 900 Vacuum System

Ortus 900

Substrate holder: Dome ø800 mm, Planetary 4x ø327 mm. Automatic Optical Monitoring, Two E-guns, Resistance evap., End hall assist and RF Plasma Assist Source.

Enlarged version of compact ORTUS 700 that is aimed to provide possibility to work with bigger substrates.

CONTACT US

Configuration Options:

1. Substrate Holder

Ortus 900 Vacuum System Technical Spec

2. Technological Devices​

  • Electron Beam Evaporation (EBE)

    • 3 different sizes EV M-6, EV M-8, EV M-10

    • Customized crucibles, 1 ... 12 pockets

    • Max. quantity : 2 pcs

  • Cleaning and Assistance sources

    • End-Hall ion source with Ion Current Density up to 1 mA/cm^2

    • Accelerator with anode Layer (Ion Current Density up to 4.2 mA/cm^2)

    • Copra: RF Plasma Assist Source (Ion Current Density up to 2.5 mA/cm^2)

    • Max. quantity : 1 pcs

  • Resistance evaporation source

    • Max. quantity : 1 pcs together with 2 EBE

3. Coating Process Control

  • Rate and thickness control system (quartz control)

  • Optical process monitoring system OCP

    • OCP Singlewave for monochromatic monitoring.

4. Accessories

  • Substrate heating system

    • IR lamps

    • Tubular heater

Other Ortus Models

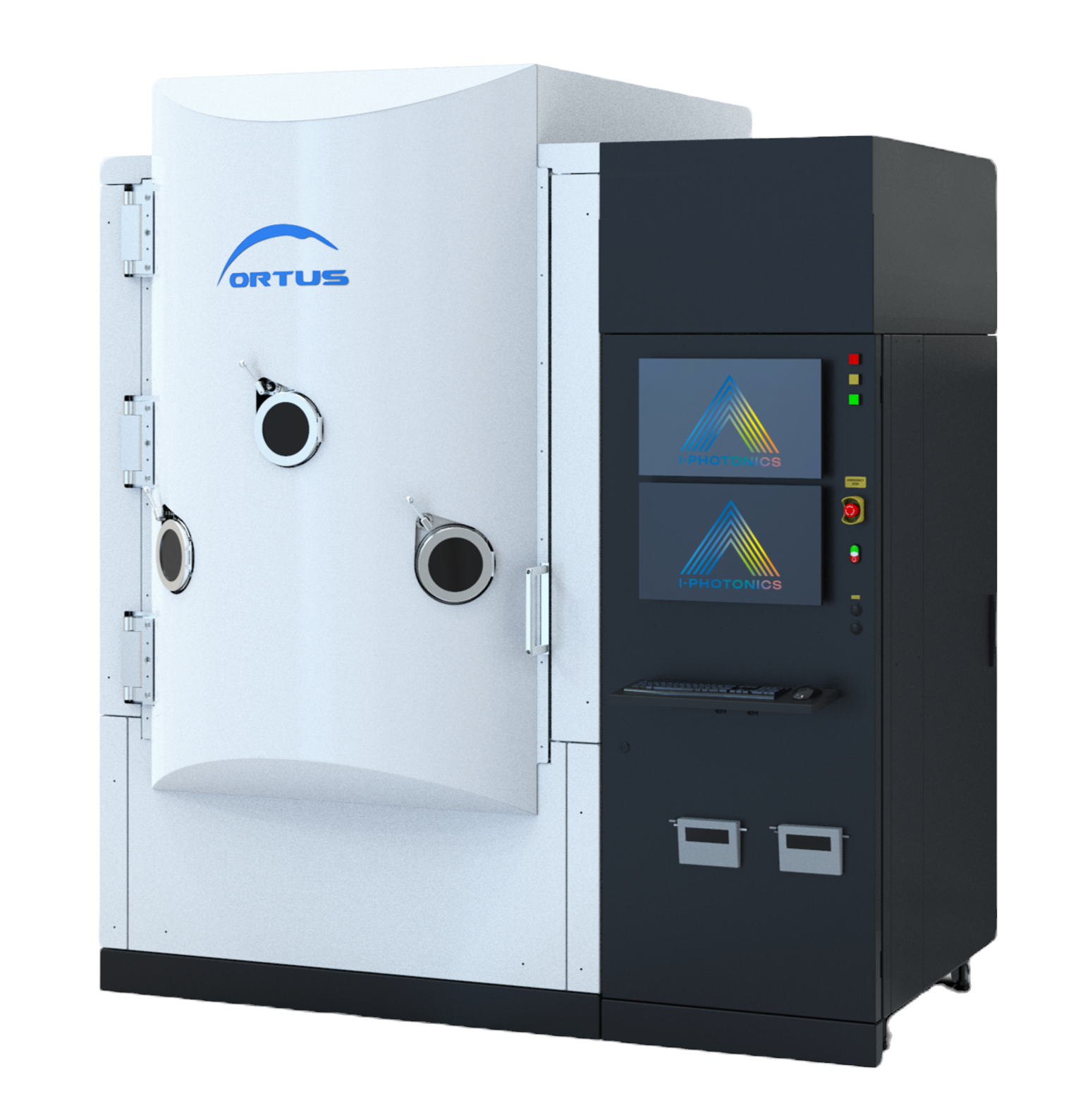

Ortus 1500 Vacuum System

Ortus 1500

Substrate holder: Dome ø1390 mm,

Planetary 4x ø590 mm.

Automatic Optical Monitoring.

2xE-gun, 2xResistance evap,

RF Plasma Assist Source

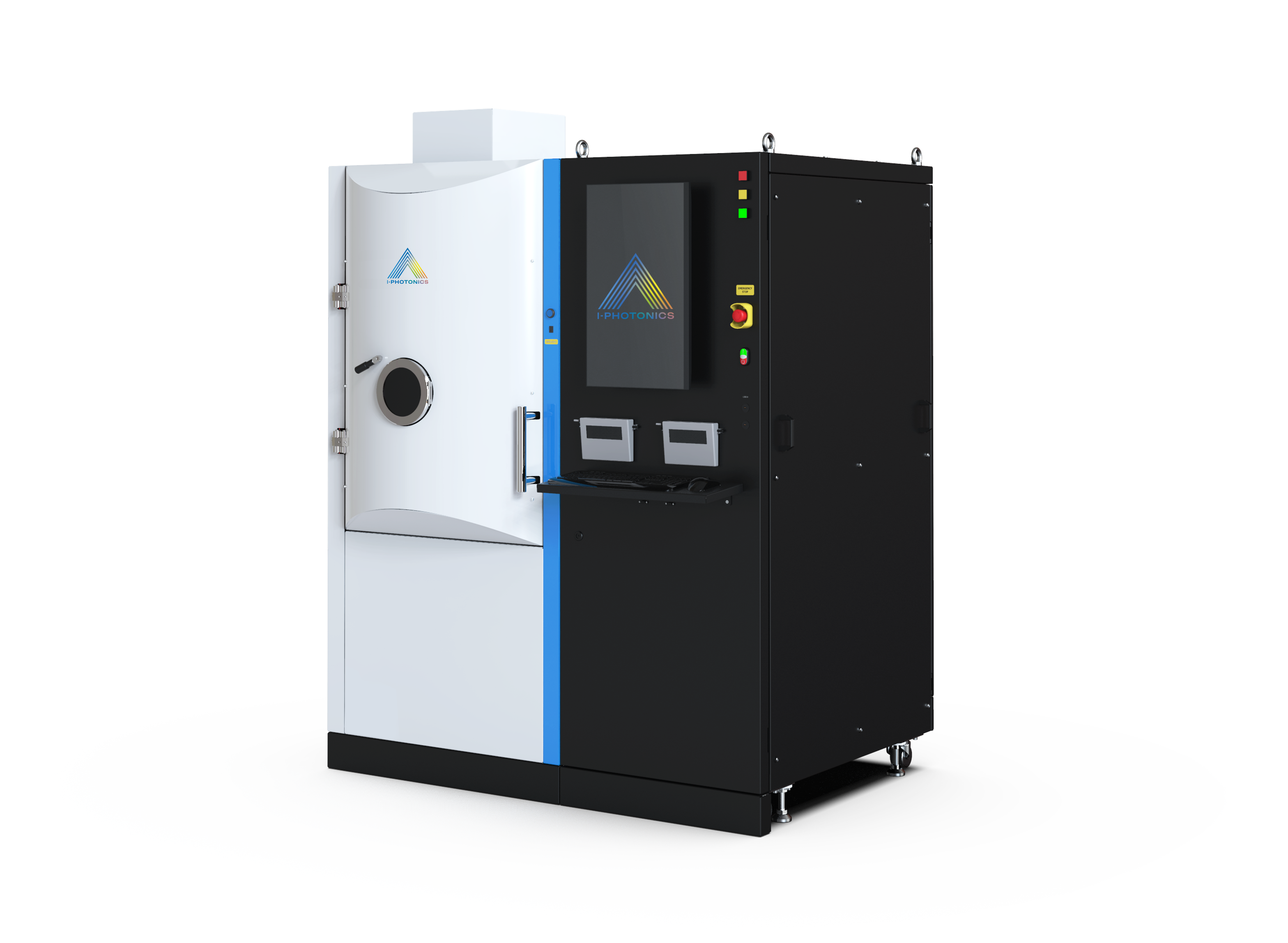

Ortus 700 Vacuum System

Ortus 700

Substrate holder: Dome ø620 mm, Planetary 3x ø250 mm.

Automatic Optical Monitoring.

2xE-gun, Resistance evap., End hall assist, RF Plasma Assist Source.

Ortus 1100 Vacuum System

Ortus 1100

Substrate holder: Dome ø995 mm,

Planetary 4x ø387 mm.

Automatic Optical Monitoring.

2xE-gun, 2XResistance evap,

RF Plasma Assist Source.
